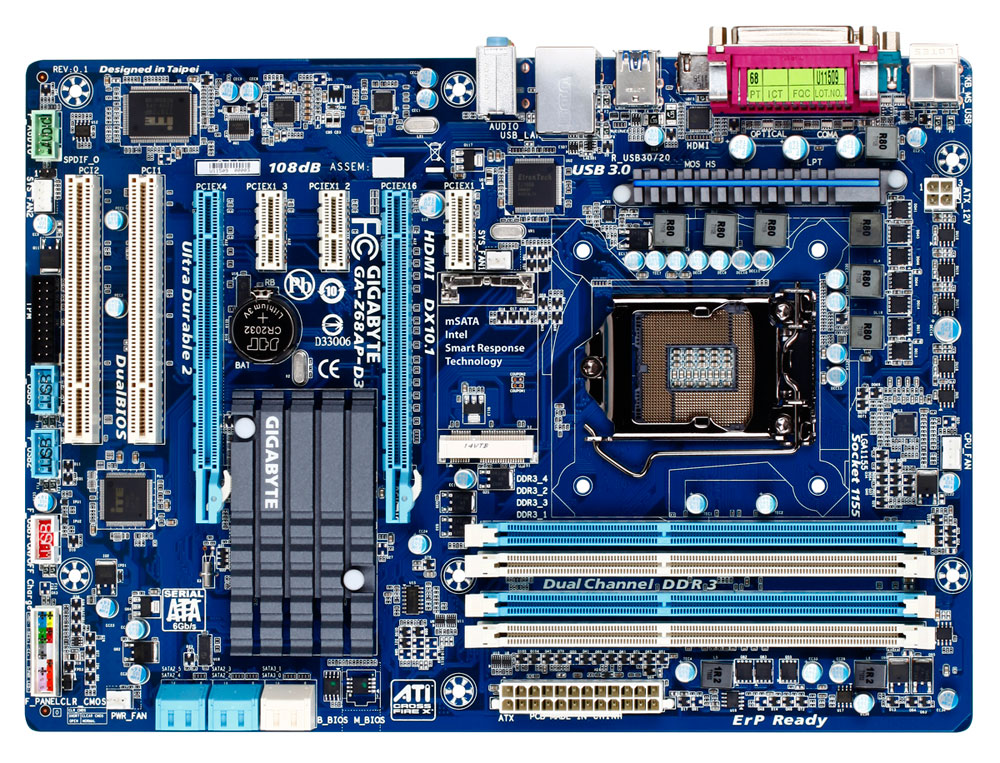

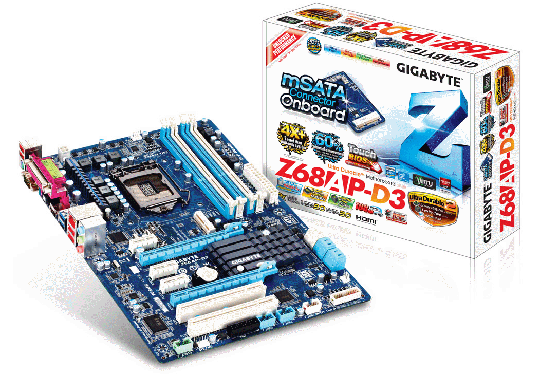

CARTE MERE GIGABYTE Z68AP-D3

Ref: CM0058
Disponible En Stock

Généralités Supports for LGA1155 2nd Generation Intel® Core™ Processors Touch BIOS™ delivers the innovative

Ajouter à vos favories    |    Ajouter à comparer    |    Email a vos amis

Généralités


Supports for LGA1155 2nd Generation Intel® Core™ Processors
Touch BIOS™ delivers the innovative new way to modify BIOS.
4X performance boost with mSATA Intel® Smart Response Technology
Supports USB 3.0 with superfast transfer rates of up to 5 Gbps
High speed SATA3 storage interface with superfast 6Gbps link speed
GIGABYTE 3x USB Power with On/Off Charge USB ports
CrossFireX multi-graphics support for ultimate graphics performance
Hybrid EFI technology with DualBIOS for 3TB HDD support
HDMI graphics output for smoother HD video playback
XHD technology accelerating hard drive performance with ease
GIGABYTE DualBIOS™ technology delivering highest level failure protection




Introduction


The GA-Z68AP-D3 motherboard, based on the Intel® Z68 Express Chipset and supporting the new 2nd generation Intel® Core™ processors. Delivering the very best that Intel® 6 series chipsets have to offer, including a significant performance boost with Intel® Smart Response Technology, the first ever mSATA drive connectors on a standard desktop PC motherboard, and GIGABYTE's proprietary Touch BIOS™ technology, GIGABYTE Z68 series motherboards put users in the driver seat, allowing them to take total control over how their system operates and performs to best match their individual computing needs.

GIGABYTE Z68 motherboards are equipped with the much anticipated Intel® Smart Response Technology, allowing users to experience system performance similar to SSD-only systems. Intel® Smart Response technology works by using intelligent block-based caching of frequently used applications to improve system performance and responsiveness. In fact, GIGABYTE Z68 motherboards with Intel® Smart Response Technology are able to outperform hybrid drive systems by more than 2X (PC Mark Vantage HDD test) and HDD-only systems by as much as 4X (PC Mark Vantage HDD test) and deliver

CPU
  1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel®Celeron® processors in the LGA1155 package
  2. L3 cache varies with CPU
(Some Intel® Core™ processors require a graphic card, please refer "CPU support List" for more information.)
Chipset
  1. Intel® Z68 Express Chipset
Memory
  1. 4 x 1.5V DDR3 DIMM sockets supporting up to 32 GB of system memory
    * Due to Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than 4 GB.
  2. Dual channel memory architecture
  3. Support for DDR3 2133/1866/1600/1333/1066 MHz memory modules
  4. Support for non-ECC memory modules
  5. Support for Extreme Memory Profile (XMP) memory modules
(Please refer "Memory Support List" for more information.)
Onboard Graphics Integrated Graphics Processor:
  1. 1 x HDMI port, supporting a maximum resolution of 1920x1200
Audio
  1. Realtek ALC889 codec
  2. High Definition Audio
  3. 2/4/5.1/7.1-channel
    * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
  4. Support for S/PDIF Out
LAN
  1. 1 x Realtek RTL8111E chip (10/100/1000 Mbit)
Expansion Slots
  1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
  2. 1 x PCI Express x16 slot, running at x4 (PCIEX4)
    * The PCIEX4 slot shares bandwidth with the PCIEX1_2 and PCIEX1_3 slots. When the PCIEX1_2 slot or the PCIEX1_3 slot is populated, the PCIEX4 slot will operate at up to x1 mode.
  3. 3 x PCI Express x1 slots
    (All PCI Express slots conform to PCI Express 2.0 standard.)
  4. 2 x PCI slots
Multi-Graphics Technology
  1. Support for AMD CrossFireX™ technology
    * The PCIEX16 slot operates at up to x4 mode when AMD CrossFireX™ is enabled.
Storage Interface Chipset:
  1. 2 x SATA 6Gb/s connectors (SATA3_0, SATA3_1) supporting up to 2 SATA 6Gb/s devices
  2. 4 x SATA 3Gb/s connectors (SATA2_2~SATA2_5) supporting up to 4 SATA 3Gb/s devices
    * The SATA2_5 connector will become unavailable when the mSATA connector is installed with a solid state drive.
  3. Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * When a RAID set is built across the SATA 6Gb/s and SATA 3Gb/s channels, the system performance of the RAID set may vary depending on the devices being connected.
USB Chipset:
  1. Up to 10 USB 2.0/1.1 ports (4 ports on the back panel, 6 ports available through the internal USB headers)
Etron EJ168 chip:
  1. Up to 2 USB 3.0/2.0 ports on the back panel
Internal I/O Connectors
  1. 1 x 24-pin ATX main power connector
  2. 1 x 4-pin ATX 12V power connector
  3. 2 x SATA 6Gb/s connectors
  4. 4 x SATA 3Gb/s connectors
  5. 1 x mSATA connector
  6. 1 x CPU fan header
  7. 2 x system fan headers
  8. 1 x power fan header
  9. 1 x front panel header
  10. 1 x front panel audio header
  11. 1 x S/PDIF Out header
  12. 3 x USB 2.0/1.1 headers
  13. 1 x clearing CMOS jumper
  14. 1 x Trusted Platform Module (TPM) header

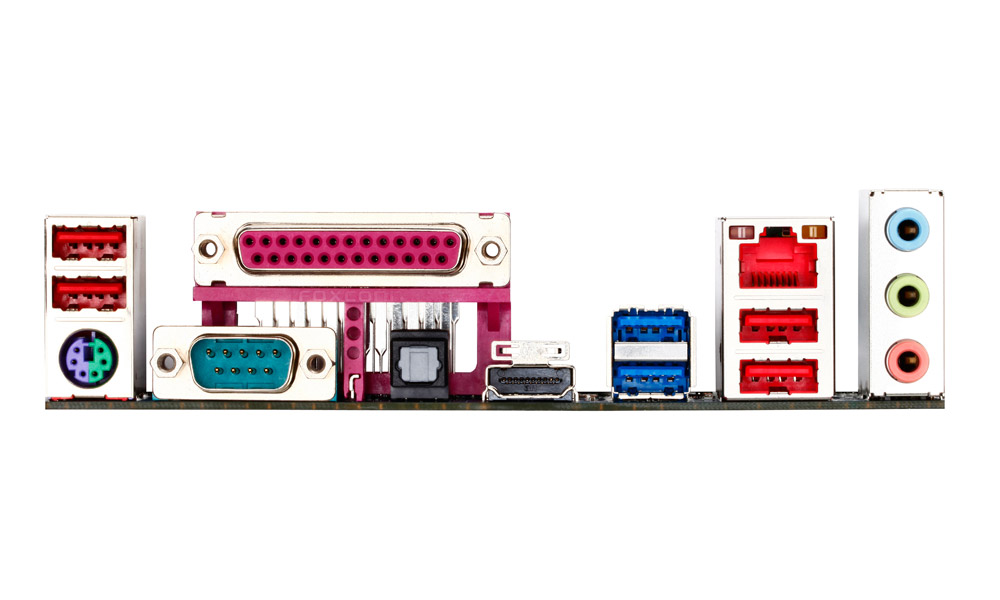

Back Panel Connectors
  1. 1 x PS/2 keyboard/mouse port
  2. 1 x parallel port
  3. 1 x serial port
  4. 1 x optical S/PDIF Out connector
  5. 1 x HDMI port
  6. 4 x USB 2.0/1.1 ports
  7. 2 x USB 3.0/2.0 ports
  8. 1 x RJ-45 port
  9. 3 x audio jacks (Line In/Line Out/Microphone)
I/O Controller
  1. iTE IT8728 chip
BIOS
  1. 2 x 32 Mbit flash
  2. Use of licensed AWARD BIOS
  3. Support for DualBIOS™
  4. PnP 1.0a, DMI 2.0, SM BIOS 2.4, ACPI 1.0b
Unique Features
  1. Support for @BIOS
  2. Support for Q-Flash
  3. Support for Xpress BIOS Rescue
  4. Support for Download Center
  5. Support for Xpress Install
  6. Support for Xpress Recovery2
  7. Support for EasyTune
    * Available functions in EasyTune may differ by motherboard model.
  8. Support for Smart 6™
  9. Support for Auto Green
  10. Support for eXtreme Hard Drive (X.H.D)
  11. Support for ON/OFF Charge
  12. Support for Cloud OC
  13. Support for 3TB+ Unlock
  14. Support for TouchBIOS
  15. Support for Q-Share
Operating System
  1. Support for Microsoft® Windows® 8/7/Vista/XP
Form Factor
  1. ATX Form Factor; 30.5cm x 21.5cm
