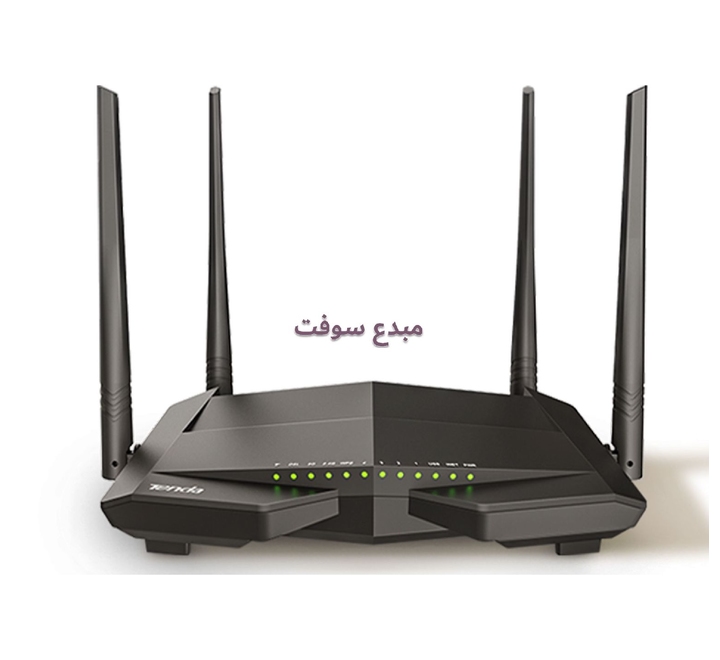

Main Features

• •  High-speed with VDSL Standards: Support VDSL2 Profile 35b, and also compatible with VDSL, ADSL2+, ADSL2 and ADSL;
• •  AC1200 Dualband Wi-Fi: Delivering both 867Mbps at 5GHz and 300Mbps at 2.4 GHz concurrently;
• •  Superior Wi-Fi Coverage: 4*5dBi Antennas, beamforming technology and MU-MIMO Technology;
• •  4 Full Gigabit Ethernet Ports: Gigabit wired speed for ultrafast data transfer;
• •  Varies Backup Connectivity: Provide VDSL/ADSL and Ethernet WAN connection types by fiber or cable;

Normes IEEE

IEEE802.11b/g/n,IEEE802.11ac, IEEE 802.3, 802.3u,IEEE 802.1Q

Norme et protocole xDSL

ITU G.993.2, Up to 17a /30a/35b profile
ITU-T G.993.5 (G.vector)
ITU-T G.998.4 (G.INP)
Full-rate ANSI T1.413 Issue 2
ITU-T G.992.1(G.DMT)
ITU-T G.992.2(G.Lite)
ITU-T G.994.1 (G.hs)
ITU-T G.992.3 (G.DMT.bis)
ITU-T G.992.5

Interfaces

3 *10/100/1000 RJ45 LAN Ports
1 *10/100/1000 RJ45 LAN/WAN Port
1 *RJ11 Port
1 * USB 2.0 Port

Dimension

220x141.6x59mm(W * D * H)

Button

WPS&Wi-Fi
RST
Power

Alimentation externe

12V 1.5A

LED Indicator

Power
Internet
USB,LAN(1-4)
WPS
WLAN 2.4G
WLAN 5G
DSL

Certification

CE、RoHS

Logiciel

Protocoles

Supports IPv4 and IPv6

Protocoles ATM/PPP

ATM Forum UNI3.1/4.0
PPP over ATM (RFC 2364)
PPP over Ethernet (RFC2516)
IPoA (RFC1577/2225)
MER\IPoE (RFC 1483 Routed)
Bridge (RFC1483 Bridge)
PVC – Up to 8 PVCs

Connexion WAN

PPPoE
Dynamic IP
Static IP
Bridge

Type d'entreprise

TR069
Internet
IPTV

Services

DDNS
UPnP
Samba
FTP Server
Port Forwarding
DMZ
IPTV

Serveur DHCP

-

Qualité de service

-

Gestion

Web Based Con guration(HTTP)
Remote management
command Line Interface
SSL for TR-069
SNMP v1/2c
Web Based Firmware Upgrade
Diagnostic Tools

Fonctions avancées

Routing

Firmware

IP

TR069

ACS, Connection request

IPv6

Radvd config,DHCPv6 config

Partage USB

Samba

VoIP

-

Autres fonctions

VPN
ALG
Ping Diagnostics
System Log
DSL Statistics

Sans fil

Wireless Standard

IEEE 802.11a/n/ac 5GHz
IEEE 802.11b/g/n 2.4GHz

Bande passante

20M/40M/80M

Plage de canaux

2.4G:Auto,CH1-CH13
5G: Auto,CH36-CH48

Antenna

4 * 5 dBi Antenna

Configuration facile des clients

Vitesse sans fil

300Mbps at 2.4GHz
867Mbps at 5GHz

Puissance de transmission

2.4GHz <20dBm(EIRP)
5GHz <23dBm(EIRP)

Fonctions sans fil

Enable/Disable Wireless Radio
Wireless Repeating
Guest network
Access Control
WPS

Sécurité sans fil

None, WPA,WPA2,WPA/WPA2

Environnement

Température de stockage

-40°c ~ 70°c

Température de fonctionnement

0℃~40℃ (32℉ ~104℉)

Humidité d'exploitation

10% ~ 90% （Non-condensing）

Humidité de stockage

5% ~ 90% (Non-condensing)

Autres

Contenu du colis

AC1200 Dualband Wi-Fi Gigabit VDSL Modem Router*1
External Splitter*1
Power Adapter*1
RJ11 DSL Cable*2
RJ45 Ethernet Cable*1
Quick Installation Guide*1
