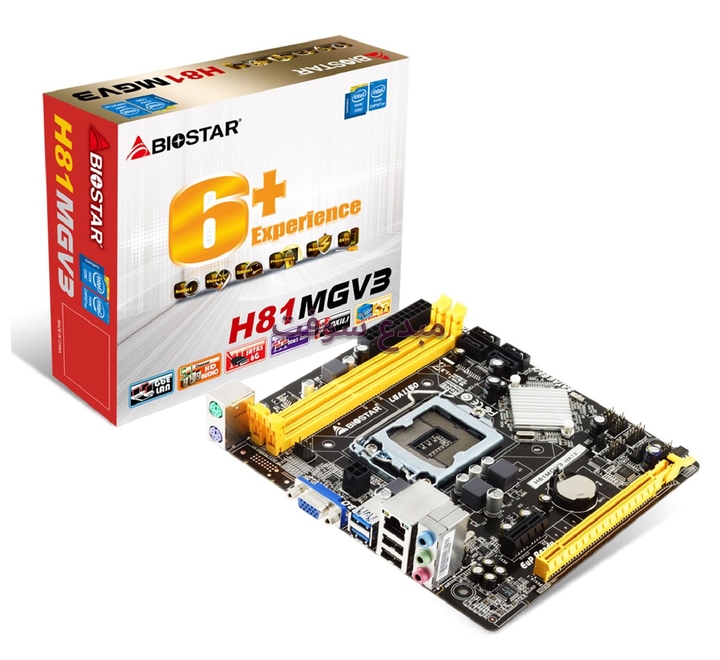

• Support the Intel 4th generation Core i7 and Core i5 processors in the 1150 package
• Intel H81 single chip architecture
• Support 2-DIMM DDR3-1600/1333 up to 16G maximum capacity
• Supports BIO-Remote 2 Technology
• Supports Charger Booster Technology

CPU SUPPORT Intel® Core™ i7 LGA 1150 Processor Intel® Core™ i5 LGA 1150 Processor Intel® Core™ i3 LGA 1150 Processor Intel® Pentium® LGA 1150

Processor Maximum CPU TDP (Thermal Design Power) : 95Watt MEMORY

Support Dual Channel DDR3 1600/1333/1066 MHz 2 x DDR3 DIMM Memory Slot Max.

Supports up to 16GB Memory

INTEGRATED VIDEO By CPU model Supports DX11.1

STORAGE 2 x SATA III

Connector 2 x SATA II

Connector LAN Realtek RTL8111G - 10/100/1000Mb/s

Controller AUDIO CODEC Realtek ALC662 6-Channel HD Audio

USB 2 x USB 3.0 Port 2 x USB 2.0 Port 2 x USB 2.0

Header EXPANSION SLOT 1 x PCI-E 2.0 x16

Slot 1 x PCI-E 2.0 x1

Slot BIOSTAR REAR I/O 1 x PS/2 Mouse 1 x PS/2 Keyboard 2 x USB 3.0 Port 2 x USB 2.0 Port 1 x VGA Port 1 x LAN Port 3 x Audio Jacks INTERNAL I/O 2 x USB 2.0 Header 2 x SATA III Connector (6Gb/s) 2 x SATA II Connector (3Gb/s ) 1 x Front Audio Header 1 x Front Panel Header 1 x CPU Fan Connector 1 x System Fan Connector 1 x COM Port Header H/W MONITORING CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring DIMENSION Micro ATX Form Factor Dimension: 19cm x 17cm ( W x L ) OS SUPPORT Supports Windows 7 / 8 / 8.1 / 10(x64) BUNDLE SOFTWARE BullGuard BIO-Remote2 Smart Speed LAN
