Better Speeds and Better Coverage

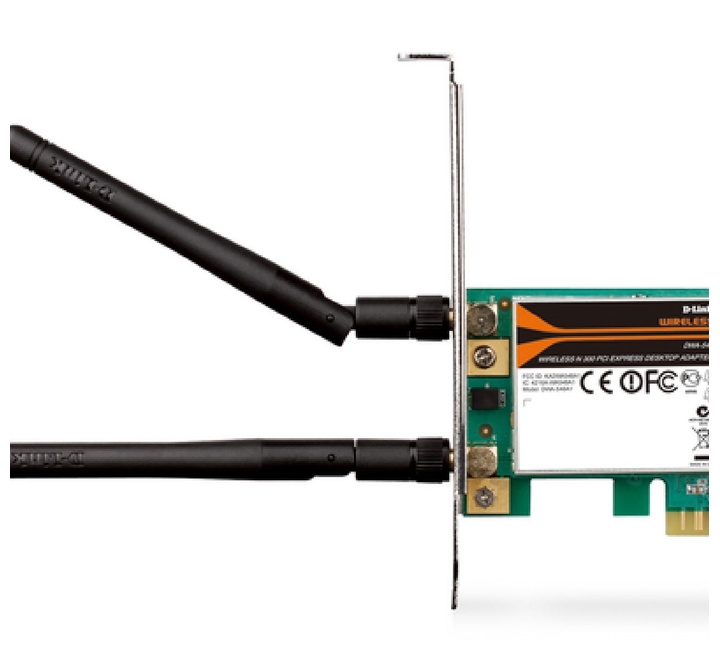

The DWA-548 Wireless N 300 PCI Express Desktop Adapter lets you connect to your wireless network with faster speeds and from greater distances. The improved wireless coverage and better speeds allow you to enjoy faster and more reliable connections throughout your home

The Benefits of PCI Express

PCI Express provides a high-bandwidth connection with superior performance over the legacy PCI interface. You can connect the Wireless N 300 PCI Express Desktop Adapter to any PCIe slot in your computer, whether it is an x1, x4, x8, or x16 slot.

Get Connected, Stay Connected

Powered by Wireless N technology, this adapter provides high-performance wireless connectivity. The DWA-548 is designed for use in bigger homes and for users that demand higher networking performance. Maximize your wireless performance by connecting this adapter to a Wireless N router and stay connected from virtually anywhere in your home. The DWA-548 is also backward compatible with 802.11g and 802.11b technology. This adapter supports WPA and WPA2 encryption that allow you to connect securely to a wireless network.

Easy to Setup, Easy to Use

A Quick Setup Wizard guides users through a simplified installation process so that you can configure this adapter without having to call a networking expert for help. Wireless Manager software is included with this product to keep track of all most frequently accessed networks. With unmatched wireless performance, reception, and security, this adapter is the best choice for easily adding or upgrading wireless connectivity to desktop computers.

OS Support

• Windows 7, Vista, or XP SP3

Standards

• IEEE 802.11g
• IEEE 802.11n

Interface

• PCI Express (PCIe)

Security

• Wi-Fi Protected Access (WPA™ & WPA2™)
• 64/128-bit WEP
• Wi-Fi Protected Setup - PIN & PBC

Antenna

• Detachable 2 dBi dipole antenna

Diagnostic LED

• Activity

Operating Temperature

• 32 to 104 ˚F (0 to 40 ˚C)

Storage Temperature

• -4 to 149 ˚F (-20 to 65 ˚C)

Operating Humidity

• 10% to 90% (Non-condensing)

Storage Humidity

• 5% to 95% (Non-condensing

Dimensions

• 2.5“ x 2.2” x 0.4” (63.5 x 55 x 11.42 mm)

Weight

• 42.5 g (1.5 oz)

Certifications

• FCC Class B
• IC
• Wi-Fi
• Wi-Fi Protected Setup
• CE
