SWITCH 5 PORTS/ALFA S105 Additional Information  Key Features Auto-Sensing 10/100...
SWITCH 5P

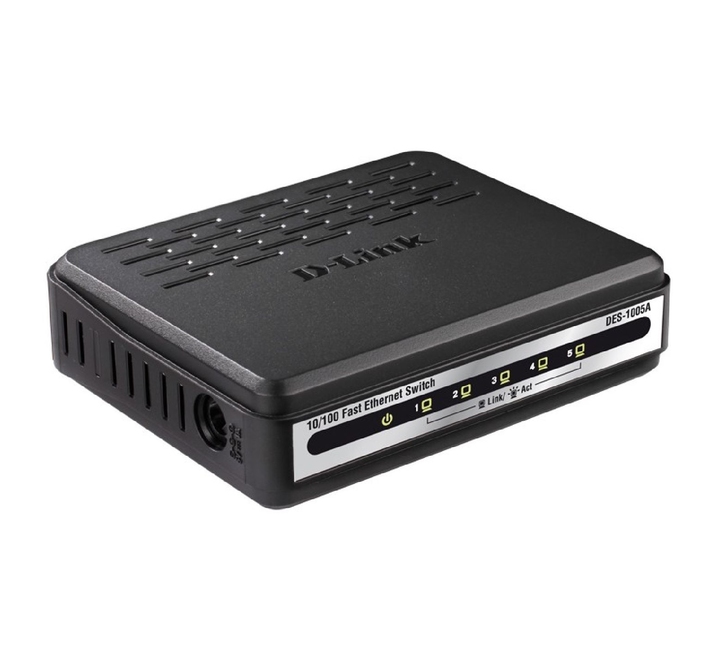

SWITCH 5 PORTS/ALFA S105

(16 avis clients)
Image Description
Disponibilité: 1 en stock
Favorie
Additional Information  Key Features Auto-Sensing 10/100 Ports The DES-1005A uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly...

SKU: SW0020

1 550,00 Da
Quantity
Add to Cart
Additional Information
 Key Features

Auto-Sensing 10/100 Ports
The DES-1005A uses auto-sensing 10/100 Mbps ports, allowing a small workgroup to flexibly connect to Ethernet and Fast Ethernet devices to create an integrated network. These ports detect the network speed and auto-negotiate between 10BASE-T and 100BASE-TX, as well as between full and half-duplex, allowing you to get the maximum speed possible for each device connected to your network.

Auto MDI/MDIX Crossover
All ports support automatic MDI/MDIX crossover, eliminating the need for crossover cables or uplink ports. Each port can be plugged directly to a server, hub, router, or switch using regular straight-through twisted-pair Ethernet cables.

Flow Control for Secure Transmission
802.3x flow control on each port minimizes dropped packets when the port's receiving buffer is full. This gives you a more reliable connection for all of your connected devices.



 Warranty
- Lifetime Manufacturer Limited Warranty

Specifications

Specifications

Model D-Link DES-1005A 5-Port 10/100 Fast Ethernet Unmanaged Switch
Switching Fabric  1 Gbps switching fabric
Standards  IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
ANSI/IEEE 802.3 NWay auto-negotiation
IEEE 802.3x flow control
Protocol  CSMA/CD
Data Transfer Rates  Ethernet:
10 Mbps (half duplex)
20 Mbps (full duplex)

Fast Ethernet:
100 Mbps (half duplex)
200 Mbps (full duplex)
Topology  Star
Media Interface Exchange  Auto MDI/MDIX adjustment for all ports
Network Cables  10BASE-T:
UTP CAT 3/4/5/5e (100 m max.)
EIA/TIA-586 100-ohm STP (100 m max.)

100BASE-TX:
UTP CAT 5/5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 m max.)
Led Indicators  Per port: Link/Activity
Per device: Power
Transmission Method  Store-and-forward
Mac Address Table  2K entries per device
Mac Address Learning  Automatic update
Packet Filtering/ Forwarding Rates  Ethernet: 14,880 pps per port
Fast Ethernet: 148,800 pps per port
Ram Buffer  49KBytes per device
DC Input  External 5V/1A power adapter
Power Comsumption  Power On (Standby):
DC input: 0.3 watts
AC input: 1.1 watts

Maximum:
DC input: 2.0 watts
AC input: 3.4 watts
Heat Dissipation  Power On (Standby): AC input: 3.751 BTU/h
Maximum: AC input: 11.594 BTU/h
Operating Temperature  0 to 40 ˚C (32 to 104 ˚F)
Storage Temperature  -10 to 70 ˚C (14 to 158 ˚F)
Operating Humidity  10% to 90% RH non-condensing
Storage Humidity  5% to 90% RH non-condensing
Certifications  FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, cUL, CB
Physical Dimension  97 x 79 x 28 mm (3.8 x 3.1 x 1.1 inches)
Weight  < 1kg
