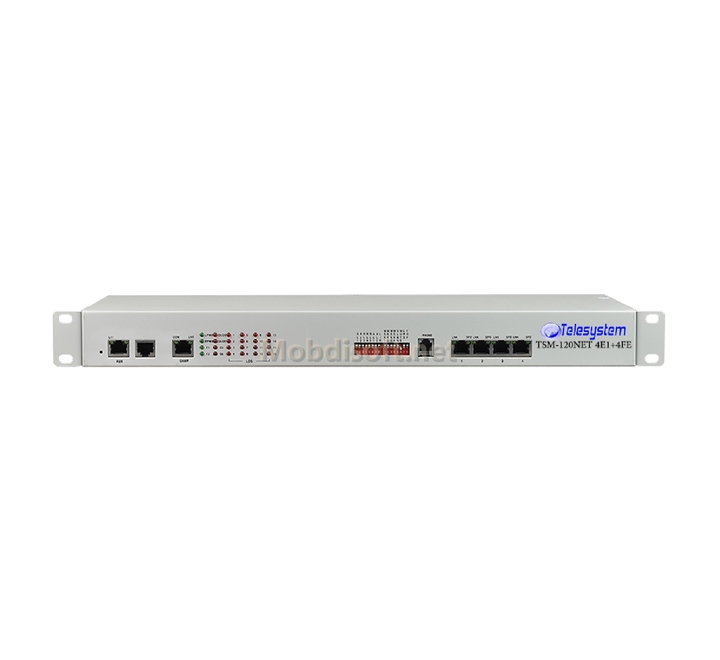

Multiplexeur PDH (TNLE)-4×E1 (120Oh RJ45)+ 2×10/100 120NET
SKU: SW0024
TSM-120NET 4E1+4FE -to- fiber (SFP port) SM40km, 80km …
1-4*E1 interface, 1-4*10M/100M Ethernet interface (Wire Speed 100M) over fiber (SFP)40km (standard), 80km, ….
Dual power supply AC220VAC+DC48V
Provides 1-4*E1 interface, 1-4*10M/100M Ethernet interface (Wire Speed 100M) . 4* Ethernet interface is switch interface, can support VLAN. It is very flexible. It has alarm function. The work is reliable, stable, and low power consumption, high integration, small size.
Based on self -copyright IC
Ø Modular wide dynamic optical detector
Ø Ethernet (Line Speed 100M) interface rate is 10M/100M, half/full duplex Auto-Nego
Ø E1 interface comply with G.703, adopts digital clock recovery and smooth phase-lock technology
Ø Uses standard 2 wire telephone (non-telephone handles) set as engineering order-wire hotline(optional)
Ø When optical lose signal, it can detect the remote device is power off or fiber is disconnected, and indicates alarm by LED
Ø The local device can view the remote device working condition
Ø Provide command the remote interface Loop Back, ease line maintenance
Ø The transmission distance is up to 2-120Km without interruption (40km standard)
Ø AC 220V, DC-48V, DC24V can be optional
Ø DC-48V/DC24V power supply polarity detection function, Polarity-Free
Specifications
|
Model |
Model Number:TSM-120NET |
|
Functional Description |
4E1+4FE PDH，order wire phone， 19"inch 1U，（Standard telephone interface, non-telephone handles）CONSOLE, SNMP managed optional |
|
Port Description |
One optical port，4 E1 interface (75/120 ohms),4* FE Ethernet interface. |
|
Power |
Power supply: AC180V ~ 260V；DC –48V；DC +24V Power consumption: ≤10W |
|
Dimension |
Product Size: 19 inch 1U 483X138X44mm(WXDXH) |
|
Weight |
19inch 2.3KG |
